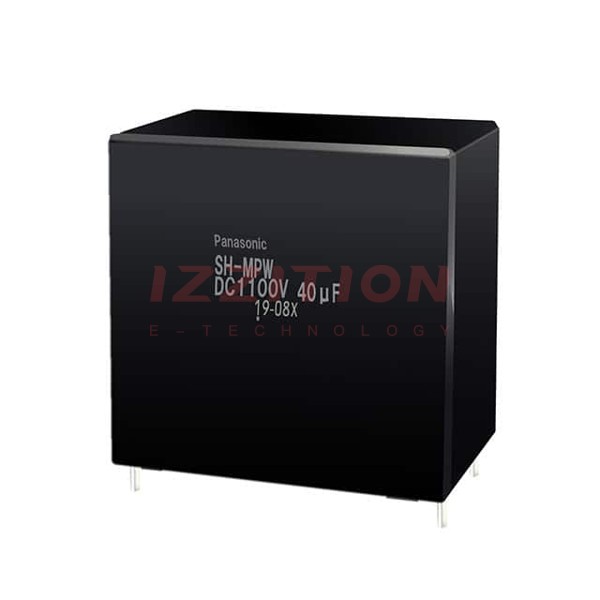

| Part Number | EZP-V60106LTT | EZP-V60126LTT | EZP-V60156LTT | EZP-V80106LTT | EZP-V60106LTB |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 12 µF | 15 µF | 10 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 600V | 600V | 600V | 800V | 600V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 16.9 mOhms | 14.3 mOhms | 12.8 mOhms | 13.9 mOhms | 16.9 mOhms |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.614" L x 0.591" W (41.00mm x 15.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.398" (35.50mm) | 1.398" (35.50mm) | 1.181" (30.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | Automotive; DC Link, DC Filtering | Automotive; DC Link, DC Filtering | Automotive; DC Link, DC Filtering | Automotive; DC Link, DC Filtering | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR |
