Please send RFQ , we will respond immediately.

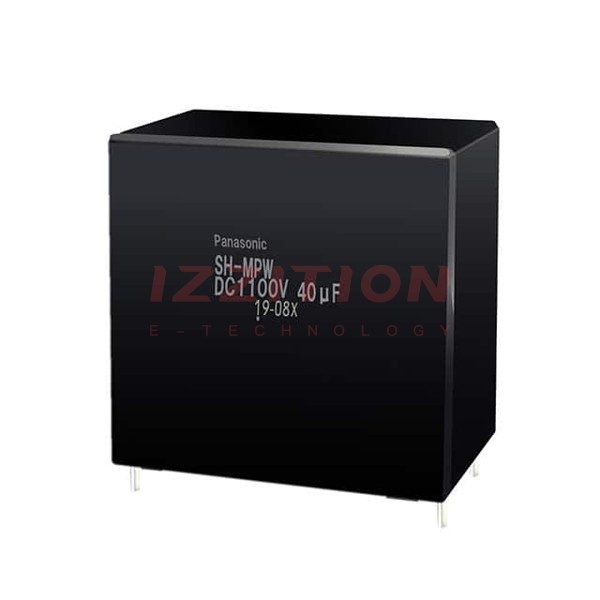

| Part Number | EZP-V1B905MTT | EZP-V1B705MTT | EZP-V1B805MTT | EZP-V1B905MTB |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 9 µF | 7 µF | 8 µF | 9 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 1100V (1.1kV) | 1100V (1.1kV) | 1100V (1.1kV) | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 12.4 mOhms | 15.5 mOhms | 13.7 mOhms | 12.4 mOhms |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads |
| Size / Dimension | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.614" L x 0.866" W (41.00mm x 22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.457" (37.00mm) | 1.457" (37.00mm) | 1.457" (37.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | Automotive; DC Link, DC Filtering | Automotive; DC Link, DC Filtering | Automotive; DC Link, DC Filtering | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR |
