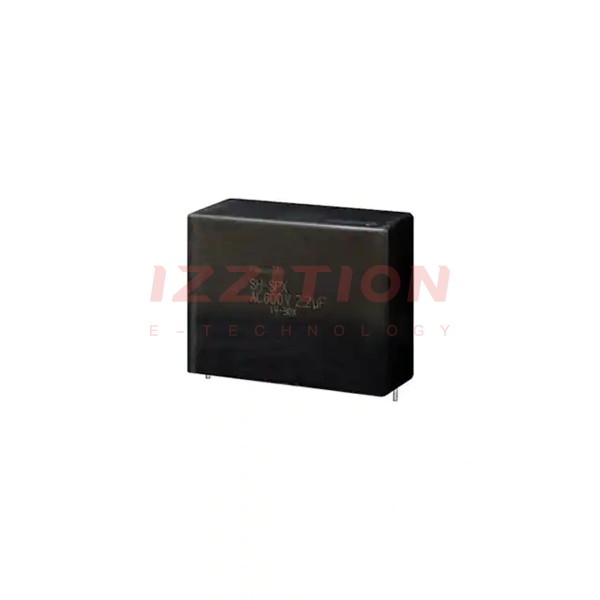

| Part Number | EZP-Q60155LTA | EZP-Q60105LTA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 1.5 µF | 1 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 600V | 600V |
| Voltage Rating - DC | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 18.7 mOhms | 26.6 mOhms |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.634" L x 0.591" W (41.50mm x 15.00mm) |
| Height - Seated (Max) | 1.732" (44.00mm) | 1.161" (29.50mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | General Purpose | General Purpose |
| Ratings | - | - |
| Features | Long Life, Low ESR | Long Life, Low ESR |
