Please send RFQ , we will respond immediately.

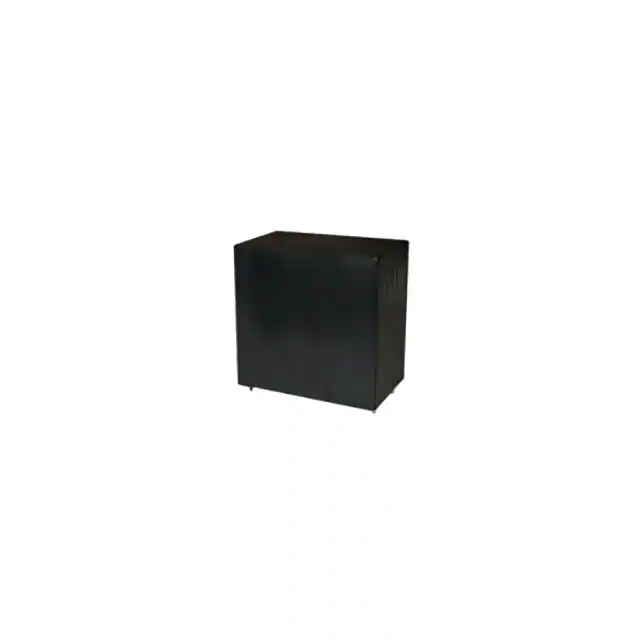

| Part Number | EZP-Q38336MTA | EZP-Q38306MTA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 33 µF | 30 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 380V | 380V |
| Voltage Rating - DC | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 6.2 mOhms | 6.6 mOhms |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.264" L x 1.772" W (57.50mm x 45.00mm) |
| Height - Seated (Max) | 2.461" (62.50mm) | 2.461" (62.50mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 2.067" (52.50mm) | 2.067" (52.50mm) |
| Applications | General Purpose | General Purpose |
| Ratings | - | - |
| Features | Long Life, Low ESR | Long Life, Low ESR |
