Please send RFQ , we will respond immediately.

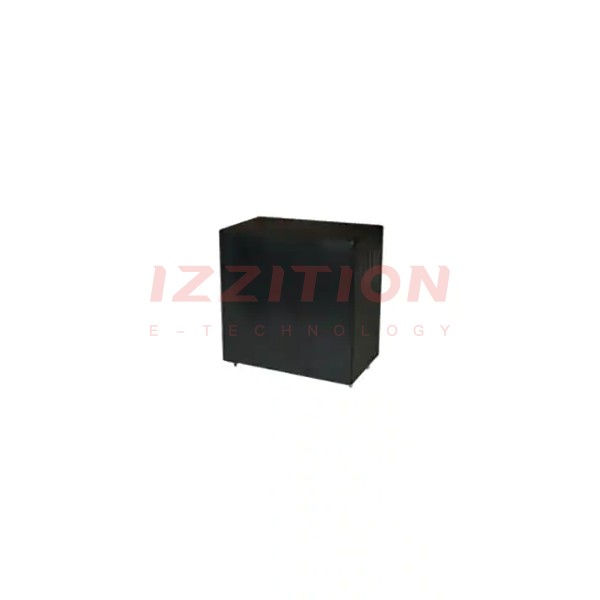

| Part Number | EZP-Q33226MTA | EZP-Q38226MTA | EZP-Q33286MTA | EZP-Q33126MTA | EZP-Q33206MTA |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 28 µF | 12 µF | 20 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 330V | 380V | 330V | 330V | 330V |
| Voltage Rating - DC | - | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 7 mOhms | 7.5 mOhms | 6.9 mOhms | 10 mOhms | 5.9 mOhms |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial | Radial |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 1.614" L x 1.693" W (41.00mm x 43.00mm) |
| Height - Seated (Max) | 1.988" (50.50mm) | 2.224" (56.50mm) | 2.559" (65.00mm) | 2.008" (51.00mm) | 2.303" (58.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 2.067" (52.50mm) | 2.067" (52.50mm) | 2.067" (52.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR |
