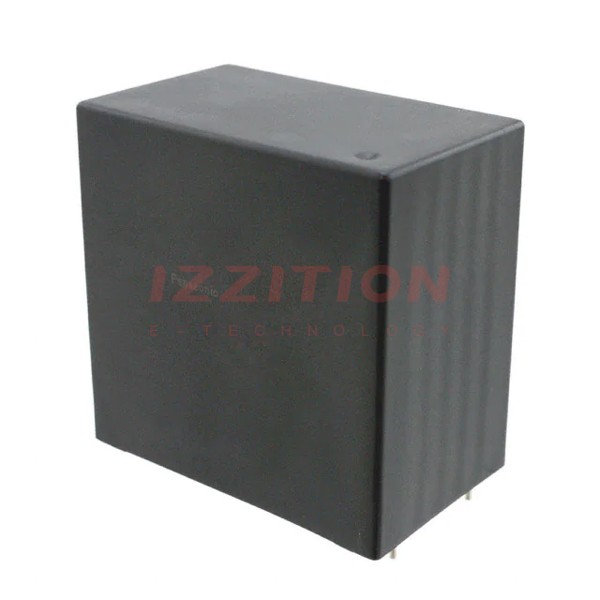

| Part Number | EZP-E80556MTA | EZP-E50556MTA | EZP-E80156MTA | EZP-E80256MTA | EZP-E80356MTA | EZP-E80456MTA | EZP-E80506MTA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 55 µF | 55 µF | 15 µF | 25 µF | 35 µF | 45 µF | 50 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | - | - |
| Voltage Rating - DC | 800V | 500V | 800V | 800V | 800V | 800V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5.9 mOhms | 4.1 mOhms | 10.5 mOhms | 6.4 mOhms | 9.7 mOhms | 7 mOhms | 6.3 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.264" L x 1.378" W (57.50mm x 35.00mm) |
| Height - Seated (Max) | 2.244" (57.00mm) | 2.028" (51.50mm) | 1.654" (42.00mm) | 2.039" (51.80mm) | 2.039" (51.80mm) | 2.047" (52.00mm) | 2.244" (57.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 2.067" (52.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 2.067" (52.50mm) | 2.067" (52.50mm) | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering |
| Ratings | - | - | - | - | - | - | - |
| Features | Low ESR | Low ESR | Low ESR | Low ESR | Low ESR | Low ESR | Low ESR |
