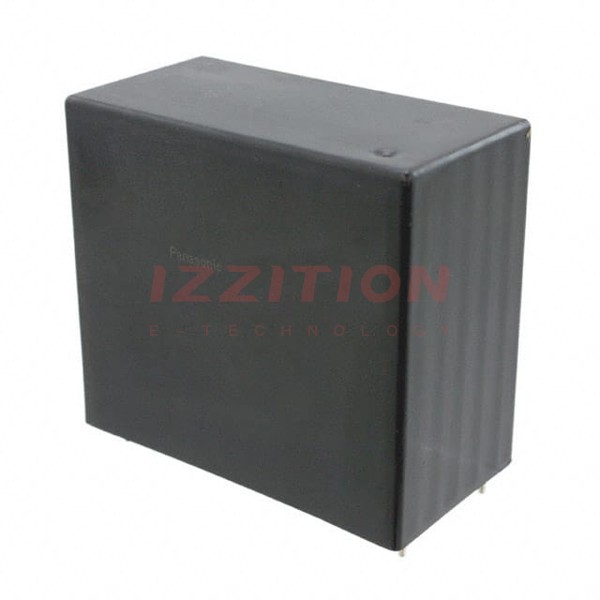

| Part Number | EZP-E50806MTA | EZP-E50856MTA | EZP-E50906MTA | EZP-E50306MTA | EZP-E50406MTA | EZP-E50506MTA | EZP-E50606MTA | EZP-E50706MTA |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 80 µF | 85 µF | 90 µF | 30 µF | 40 µF | 50 µF | 60 µF | 70 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 500V | 500V | 500V | 500V | 500V | 500V | 500V | 500V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5.7 mOhms | 5.4 mOhms | 5.1 mOhms | 7 mOhms | 5.4 mOhms | 4.4 mOhms | 3.9 mOhms | 6.5 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.264" L x 1.181" W (57.50mm x 30.00mm) |
| Height - Seated (Max) | 2.028" (51.50mm) | 2.224" (56.50mm) | 2.224" (56.50mm) | 2.028" (51.50mm) | 2.028" (51.50mm) | 2.028" (51.50mm) | 2.028" (51.50mm) | 2.028" (51.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 2.067" (52.50mm) | 2.067" (52.50mm) | 2.067" (52.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering |
| Ratings | - | - | - | - | - | - | - | - |
| Features | Low ESR | Low ESR | Low ESR | Low ESR | Low ESR | Low ESR | Low ESR | Low ESR |
