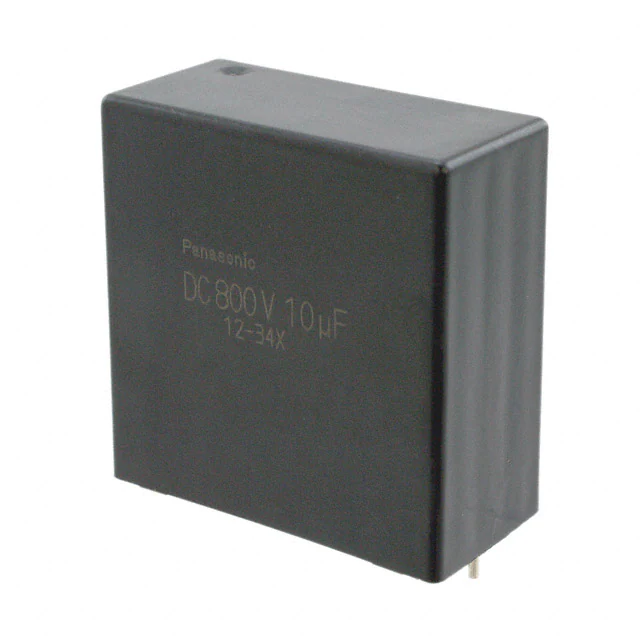

| Part Number | EZP-E50156LTA | EZP-E50256LTA | EZP-E50106LTA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 15 µF | 25 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 500V | 500V | 500V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 14.8 mOhms | 8.8 mOhms | 22 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.673" (42.50mm) | 1.673" (42.50mm) | 1.654" (42.00mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering |
| Ratings | - | - | - |
| Features | Low ESR | Low ESR | Low ESR |
