EZA-NT15AAAJ
  • Share:

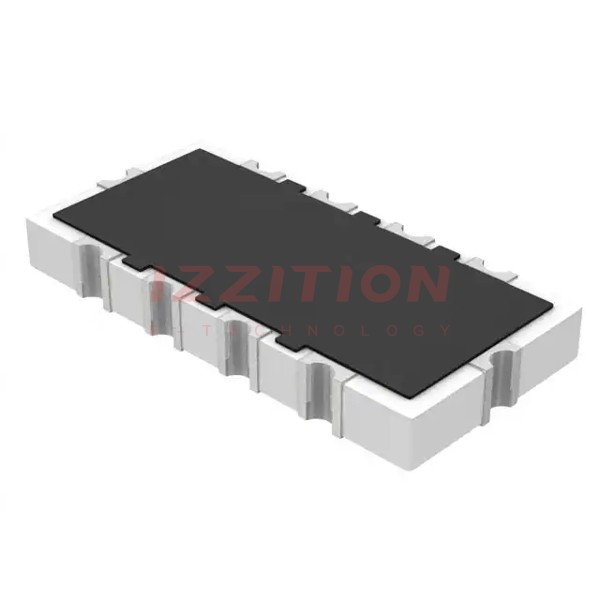

Panasonic Electronic Components EZA-NT15AAAJ

Manufacturer No:
EZA-NT15AAAJ
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
EZA-NT15AAAJ Datasheet
ECAD Model:
-
Description:
FILTER RC(PI) 22 OHM/470PF SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Low Pass
Filter Order:1st
Technology:RC (Pi)
Number of Channels:4
Center / Cutoff Frequency:-
Attenuation Value:-
Resistance - Channel (Ohms):22
Current:-
Values:R = 22Ohms, C = 470pF
ESD Protection:No
Operating Temperature:-25°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:50V
Mounting Type:Surface Mount
Package / Case:2512 (6432 Metric), Concave
Size / Dimension:0.252" L x 0.122" W (6.40mm x 3.10mm)
Height:0.039" (1.00mm)
0 Remaining View Similar

In Stock

-
459

Please send RFQ , we will respond immediately.
