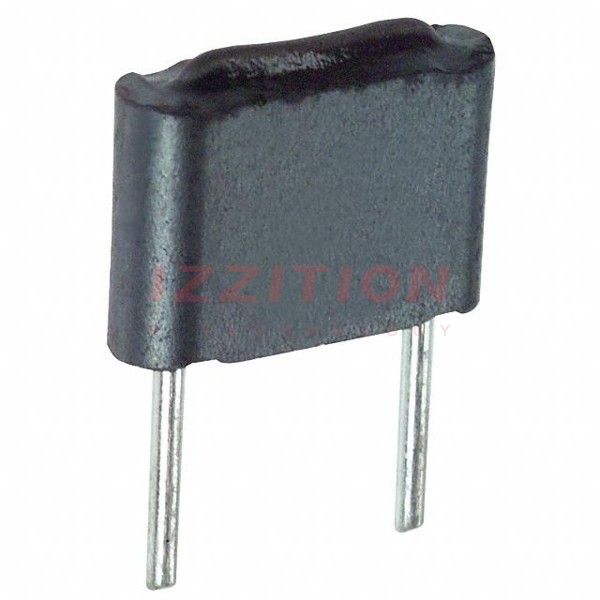

| Part Number | EXC-ELDR25C | EXC-ELDR25V | EXC-ELDR35C |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Filter Type | - | - | - |
| Number of Lines | 1 | 1 | 1 |
| Impedance @ Frequency | 80 Ohms @ 100 MHz | 80 Ohms @ 100 MHz | 90 Ohms @ 100 MHz |
| Current Rating (Max) | 7A | 7A | 7A |
| DC Resistance (DCR) (Max) | 10mOhm | 10mOhm | 10mOhm |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Package / Case | Radial | Radial | Axial, Split Radial Bend |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Height (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.209" (5.30mm) |
| Size / Dimension | 0.303" L x 0.096" W (7.70mm x 2.45mm) | 0.303" L x 0.096" W (7.70mm x 2.45mm) | 0.354" Dia (9.00mm) |
| Features | - | - | - |
