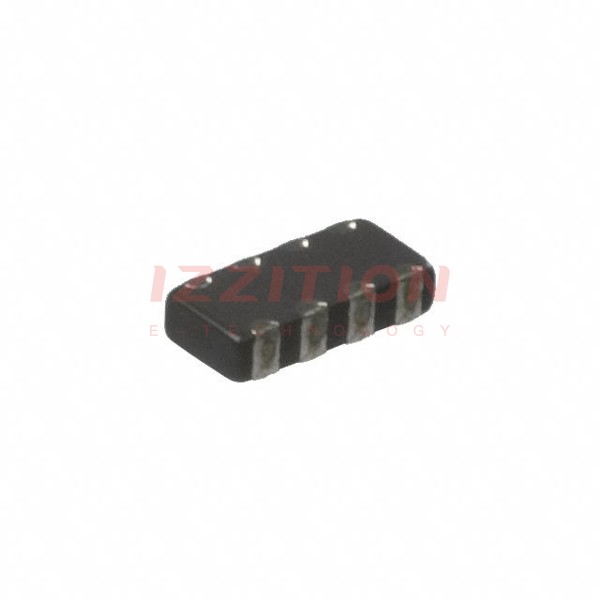

| Part Number | EXC-28BA221U | EXC-28BB221U | EXC-28BA121U |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Filter Type | - | - | - |
| Number of Lines | 4 | 4 | 4 |
| Impedance @ Frequency | 220 Ohms @ 100 MHz | 220 Ohms @ 100 MHz | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 100mA | 100mA | 100mA |
| DC Resistance (DCR) (Max) | 700mOhm | 700mOhm | 500mOhm |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Package / Case | 0804 (2010 Metric), Array, 8 PC Pad | 0804 (2010 Metric), Array, 8 PC Pad | 0804 (2010 Metric), Array, 8 PC Pad |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Size / Dimension | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) |
| Features | - | - | - |
