Please send RFQ , we will respond immediately.

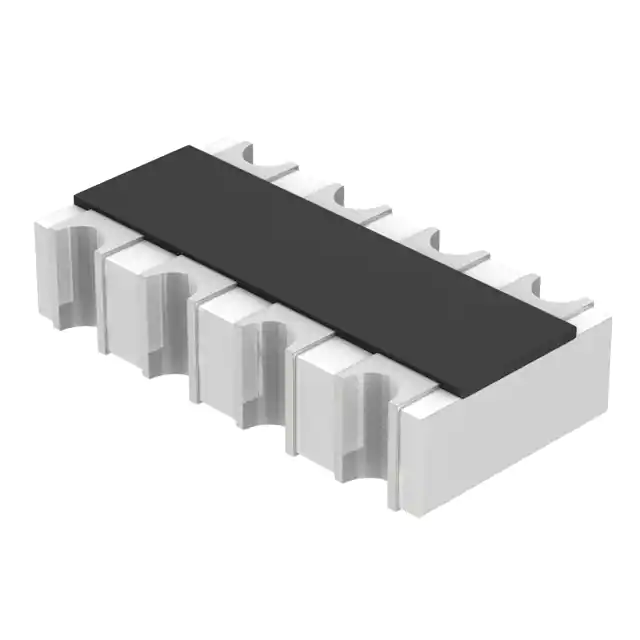

| Part Number | EXB-V8V622JV | EXB-V8V822JV | EXB-V8V682JV | EXB-V8V623JV | EXB-V8V624JV | EXB-V8V6R2JV | EXB-V8V222JV | EXB-V8V620JV | EXB-V8V621JV |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 6.2k | 8.2k | 6.8k | 62k | 620k | 6.2 | 2.2k | 62 | 620 |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - | - | - | - |
| Number of Pins | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
