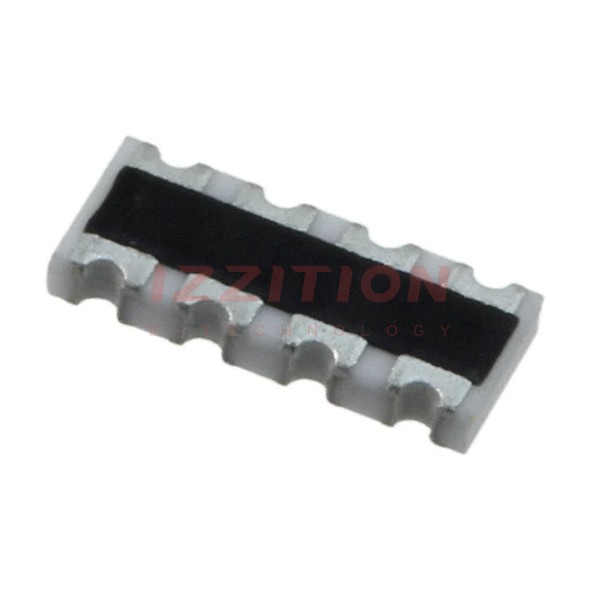

| Part Number | EXB-S8V391J | EXB-S8V390J |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Circuit Type | Isolated | Isolated |
| Resistance (Ohms) | 390 | 39 |
| Tolerance | ±5% | ±5% |
| Number of Resistors | 4 | 4 |
| Resistor Matching Ratio | - | - |
| Resistor-Ratio-Drift | - | - |
| Number of Pins | 8 | 8 |
| Power Per Element | 100mW | 100mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2009, Concave, Long Side Terminals | 2009, Concave, Long Side Terminals |
| Supplier Device Package | 2009 | 2009 |
| Size / Dimension | 0.200" L x 0.087" W (5.08mm x 2.20mm) | 0.200" L x 0.087" W (5.08mm x 2.20mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) |
