Please send RFQ , we will respond immediately.

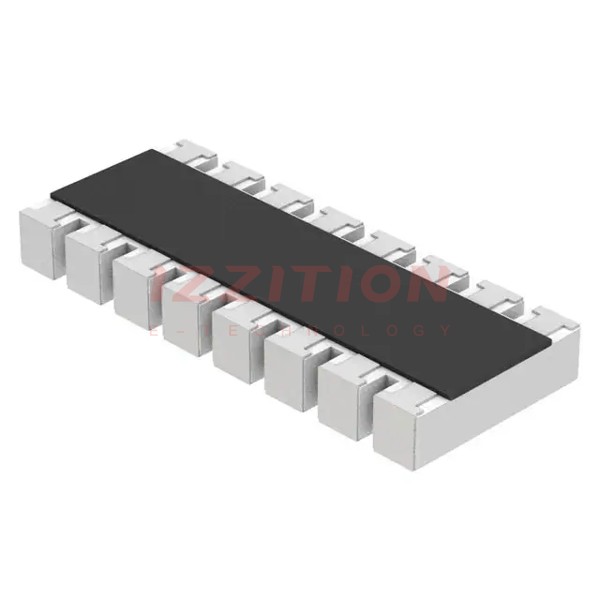

| Part Number | EXB-Q16P682J | EXB-Q16P683J | EXB-Q16P681J |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 6.8k | 68k | 680 |
| Tolerance | ±5% | ±5% | ±5% |
| Number of Resistors | 15 | 15 | 15 |
| Resistor Matching Ratio | - | - | - |
| Resistor-Ratio-Drift | - | - | - |
| Number of Pins | 16 | 16 | 16 |
| Power Per Element | 25mW | 25mW | 25mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1506, Convex, Long Side Terminals | 1506, Convex, Long Side Terminals | 1506, Convex, Long Side Terminals |
| Supplier Device Package | 1506 | 1506 | 1506 |
| Size / Dimension | 0.150" L x 0.063" W (3.80mm x 1.60mm) | 0.150" L x 0.063" W (3.80mm x 1.60mm) | 0.150" L x 0.063" W (3.80mm x 1.60mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
