Please send RFQ , we will respond immediately.

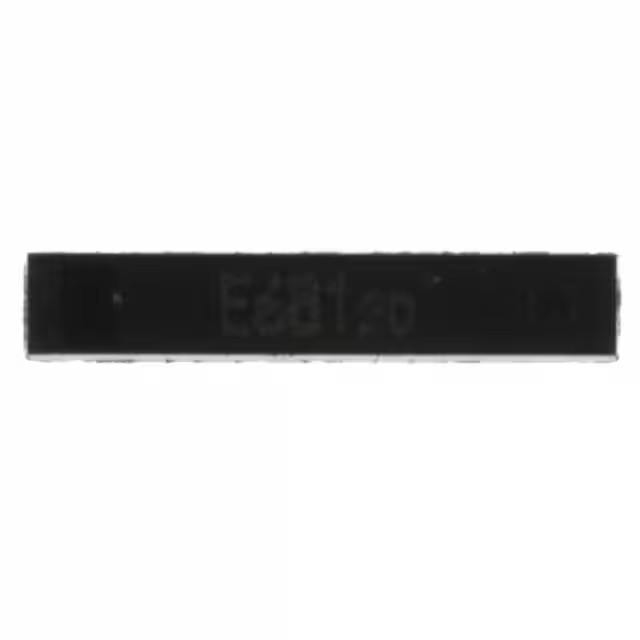

| Part Number | EXB-H8E681J | EXB-H6E681J |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Circuit Type | Bussed | Bussed |
| Resistance (Ohms) | 680 | 680 |
| Tolerance | ±5% | ±5% |
| Number of Resistors | 7 | 5 |
| Resistor Matching Ratio | - | - |
| Resistor-Ratio-Drift | - | - |
| Number of Pins | 8 | 6 |
| Power Per Element | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-SSIP | 6-SSIP |
| Supplier Device Package | 8-SIP | 6-SIP |
| Size / Dimension | 0.429" L x 0.087" W (10.89mm x 2.20mm) | 0.329" L x 0.087" W (8.35mm x 2.20mm) |
| Height - Seated (Max) | 0.106" (2.69mm) | 0.106" (2.69mm) |
