Please send RFQ , we will respond immediately.

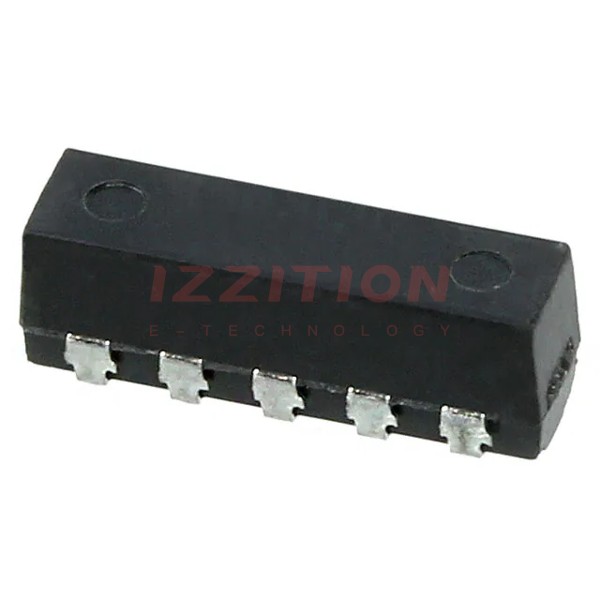

| Part Number | EXB-H5E152J | EXB-H5E153J |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Circuit Type | Bussed | Bussed |
| Resistance (Ohms) | 1.5k | 15k |
| Tolerance | ±5% | ±5% |
| Number of Resistors | 4 | 4 |
| Resistor Matching Ratio | - | - |
| Resistor-Ratio-Drift | - | - |
| Number of Pins | 5 | 5 |
| Power Per Element | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 5-SSIP | 5-SSIP |
| Supplier Device Package | 5-SIP | 5-SIP |
| Size / Dimension | 0.279" L x 0.087" W (7.08mm x 2.20mm) | 0.279" L x 0.087" W (7.08mm x 2.20mm) |
| Height - Seated (Max) | 0.106" (2.69mm) | 0.106" (2.69mm) |
