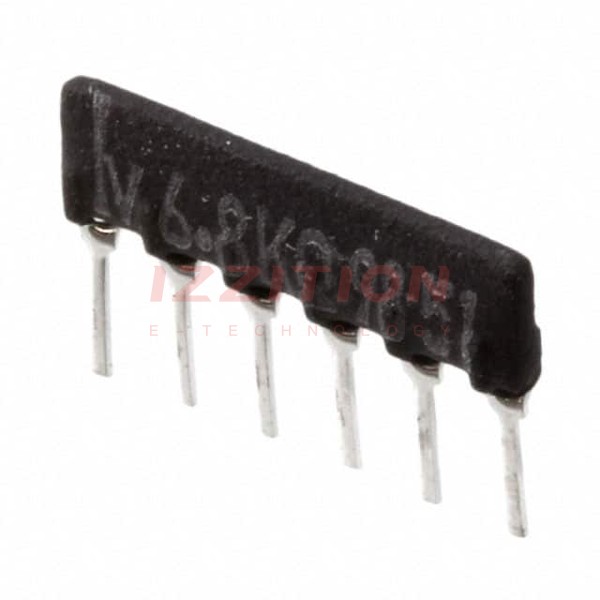

| Part Number | EXB-F6WT01G | EXB-F6WT03G | EXB-F6WT06G | EXB-F6WT07G | EXB-F8WT01G |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Circuit Type | Dual Terminator | Dual Terminator | Dual Terminator | Dual Terminator | Dual Terminator |
| Resistance (Ohms) | 160, 240 | 220, 270 | 330, 470 | 330, 680 | 160, 240 |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 8 | 8 | 8 | 8 | 12 |
| Resistor Matching Ratio | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - |
| Number of Pins | 6 | 6 | 6 | 6 | 8 |
| Power Per Element | 125mW | 125mW | 125mW | 125mW | 125mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 8-SIP |
| Supplier Device Package | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 8-SIP |
| Size / Dimension | 0.586" L x 0.100" W (14.88mm x 2.54mm) | 0.586" L x 0.100" W (14.88mm x 2.54mm) | 0.586" L x 0.100" W (14.88mm x 2.54mm) | 0.586" L x 0.100" W (14.88mm x 2.54mm) | 0.786" L x 0.100" W (19.96mm x 2.54mm) |
| Height - Seated (Max) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) |
