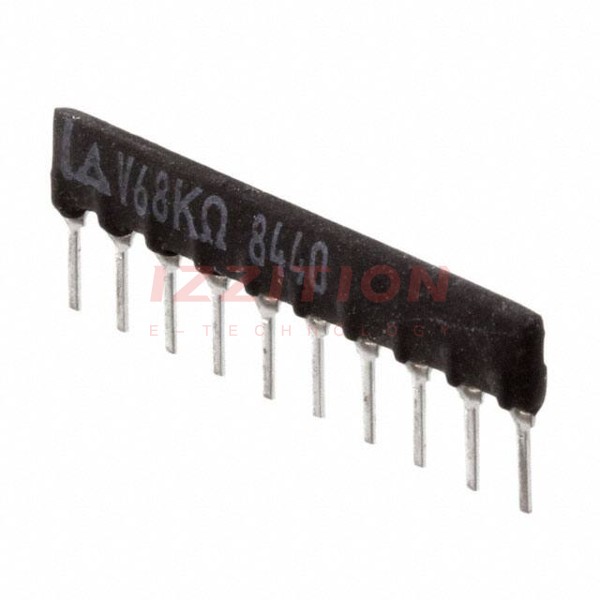

| Part Number | EXB-F10E683G | EXB-F10E684G | EXB-F10V683G |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Circuit Type | Bussed | Bussed | Isolated |
| Resistance (Ohms) | 68k | 680k | 68k |
| Tolerance | ±2% | ±2% | ±2% |
| Number of Resistors | 9 | 9 | 5 |
| Resistor Matching Ratio | - | - | - |
| Resistor-Ratio-Drift | - | - | - |
| Number of Pins | 10 | 10 | 10 |
| Power Per Element | 125mW | 125mW | 200mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 10-SIP | 10-SIP | 10-SIP |
| Supplier Device Package | 10-SIP | 10-SIP | 10-SIP |
| Size / Dimension | 0.986" L x 0.100" W (25.04mm x 2.54mm) | 0.986" L x 0.100" W (25.04mm x 2.54mm) | 0.986" L x 0.100" W (25.04mm x 2.54mm) |
| Height - Seated (Max) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) |
