Please send RFQ , we will respond immediately.

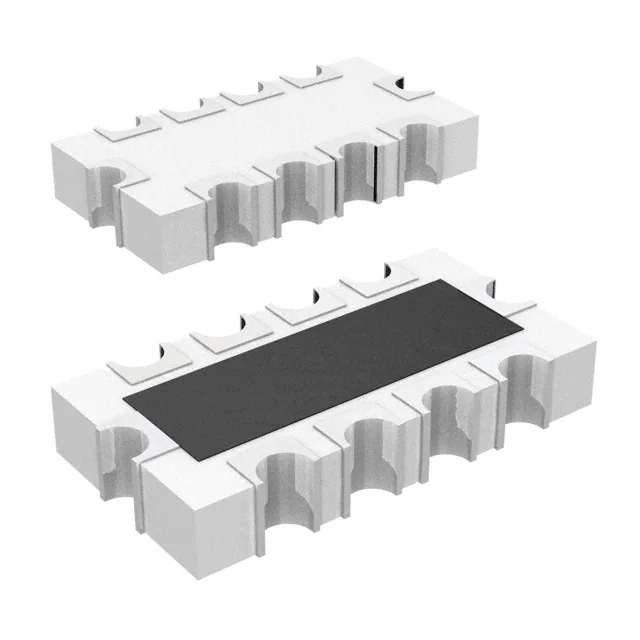

| Part Number | EXB-E10C391J | EXB-E10C392J | EXB-E10C393J | EXB-E10C394J | EXB-D10C391J | EXB-E10C331J |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 390 | 3.9k | 39K | 390k | 390 | 330 |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 8 | 8 | 8 | 8 | 8 | 8 |
| Resistor Matching Ratio | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - |
| Number of Pins | 10 | 10 | 10 | 10 | 10 | 10 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 50mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1608, Concave, Long Side Terminals | 1608, Concave, Long Side Terminals | 1608, Concave, Long Side Terminals | 1608, Concave, Long Side Terminals | 1206 (3216 Metric), Concave, Long Side Terminals | 1608, Concave, Long Side Terminals |
| Supplier Device Package | 1608 | 1608 | 1608 | 1608 | 1206 | 1608 |
| Size / Dimension | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.157" L x 0.083" W (4.00mm x 2.10mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
