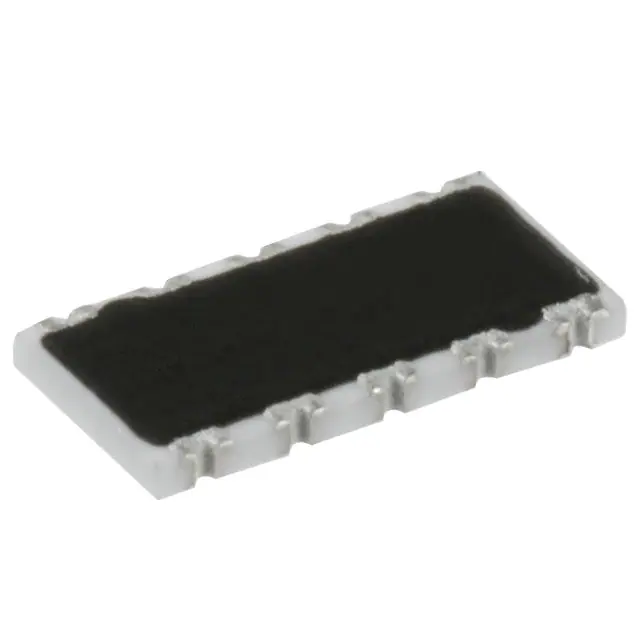

| Part Number | EXB-A10E103J | EXB-A10P103J |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Circuit Type | Bussed | Bussed |
| Resistance (Ohms) | 10k | 10k |
| Tolerance | ±5% | ±5% |
| Number of Resistors | 8 | 8 |
| Resistor Matching Ratio | - | - |
| Resistor-Ratio-Drift | - | - |
| Number of Pins | 10 | 10 |
| Power Per Element | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2512 (6432 Metric), Convex, Long Side Terminals | 2512 (6432 Metric), Concave, Long Side Terminals |
| Supplier Device Package | 2512 | 2512 |
| Size / Dimension | 0.252" L x 0.122" W (6.40mm x 3.10mm) | 0.252" L x 0.122" W (6.40mm x 3.10mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) |
