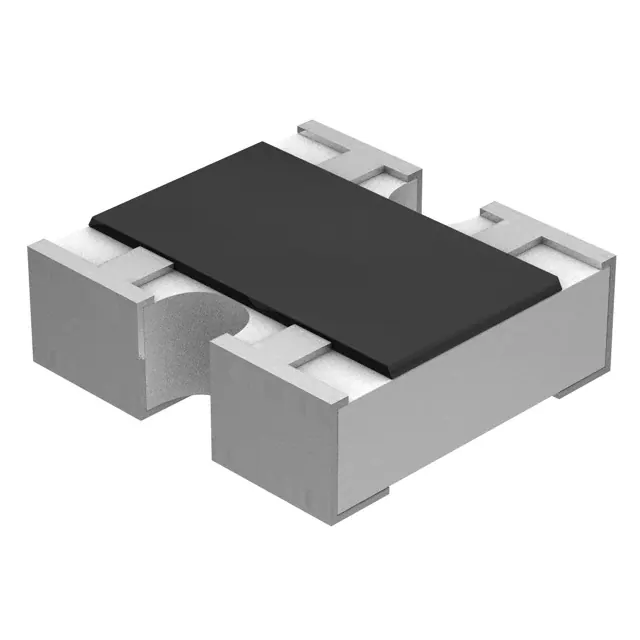

| Part Number | EXB-34V4R3JV | EXB-34V4R7JV | EXB-34V1R3JV | EXB-34V3R3JV | EXB-34V433JV | EXB-34V473JV |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 4.3 | 4.7 | 1.3 | 3.3 | 43k | 47k |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 2 | 2 | 2 | 2 | 2 | 2 |
| Resistor Matching Ratio | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - |
| Number of Pins | 4 | 4 | 4 | 4 | 4 | 4 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0606, Convex | 0606, Convex | 0606, Convex | 0606, Convex | 0606, Convex | 0606, Convex |
| Supplier Device Package | 0606 | 0606 | 0606 | 0606 | 0606 | 0606 |
| Size / Dimension | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
