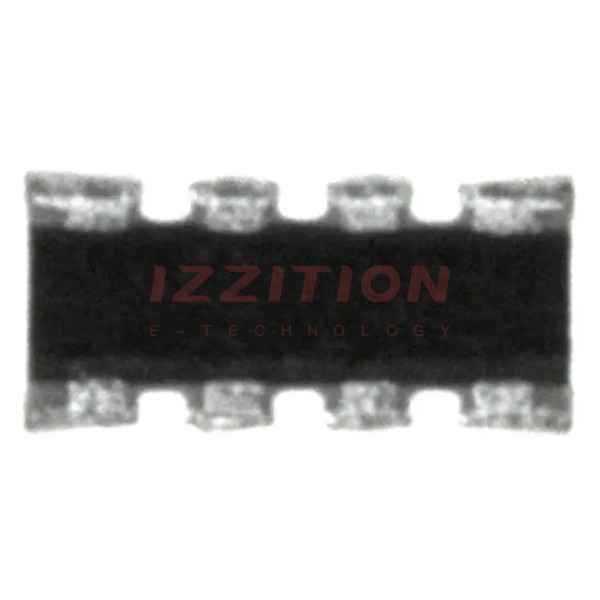

| Part Number | EXB-28N270JX | EXB-28V270JX | EXB-28N220JX |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 27 | 27 | 22 |
| Tolerance | ±5% | ±5% | ±5% |
| Number of Resistors | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - |
| Resistor-Ratio-Drift | - | - | - |
| Number of Pins | 8 | 8 | 8 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0804, Convex, Long Side Terminals | 0804, Convex, Long Side Terminals | 0804, Convex, Long Side Terminals |
| Supplier Device Package | - | 0804 | - |
| Size / Dimension | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) |
