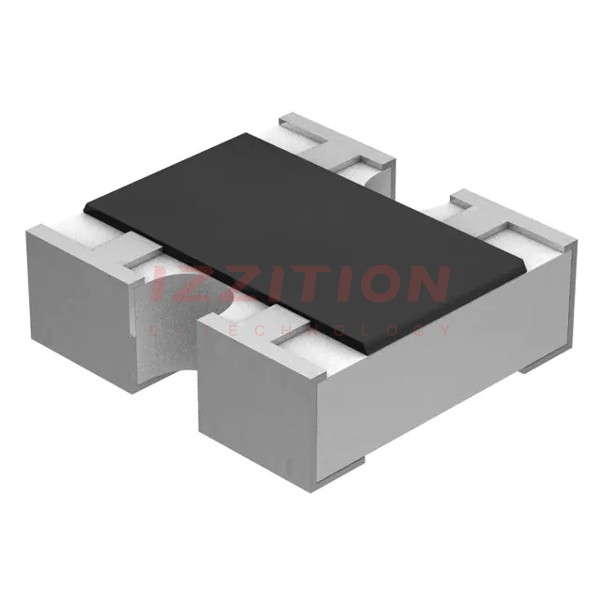

Panasonic Electronic Components EXB-24V560JX

Manufacturer No:
EXB-24V560JX
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
EXB-24V560JX Datasheet
ECAD Model:
-
Description:
RES ARRAY 2 RES 56 OHM 0404
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Circuit Type:Isolated
Resistance (Ohms):56
Tolerance:±5%
Number of Resistors:2
Resistor Matching Ratio:-
Resistor-Ratio-Drift:-
Number of Pins:4
Power Per Element:62.5mW
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 125°C
Applications:Automotive AEC-Q200
Mounting Type:Surface Mount
Package / Case:0404 (1010 Metric), Convex
Supplier Device Package:0404
Size / Dimension:0.039" L x 0.039" W (1.00mm x 1.00mm)
Height - Seated (Max):0.018" (0.45mm)
