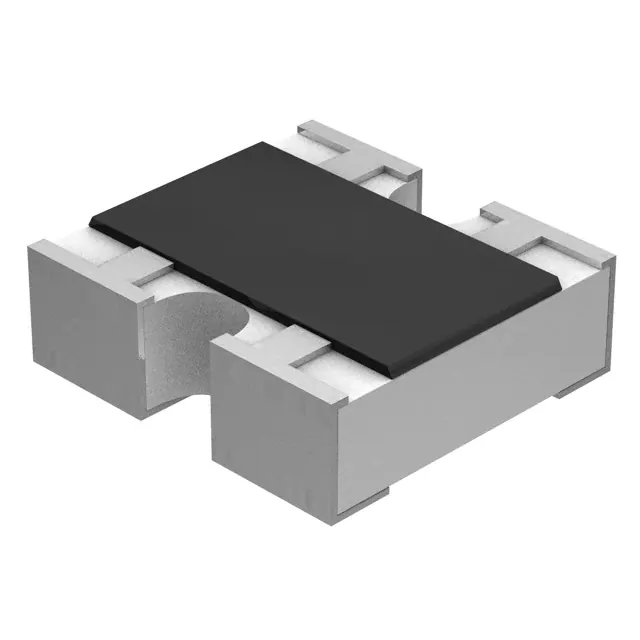

Panasonic Electronic Components-EXB-24V1R1JX - Resistor Networks, Arrays Product Specifications and Latest Quotes | Izzition

Similar Products

Part Number	EXB-24V1R1JX	EXB-24V1R5JX	EXB-24V5R1JX	EXB-24V1R2JX	EXB-24V1R3JX	EXB-24V1R6JX	EXB-24V1R8JX	EXB-24V101JX	EXB-24V111JX	EXB-24V121JX	EXB-24V131JX	EXB-24V151JX	EXB-24V161JX	EXB-24V181JX	EXB-24V1R0JX
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Circuit Type	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated
Resistance (Ohms)	1.1	1.5	5.1	1.2	1.3	1.6	1.8	100	110	120	130	150	160	180	1
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Number of Resistors	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
Resistor Matching Ratio	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Resistor-Ratio-Drift	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Number of Pins	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Power Per Element	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW
Temperature Coefficient	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Applications	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex
Supplier Device Package	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404
Size / Dimension	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)
Height - Seated (Max)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)
