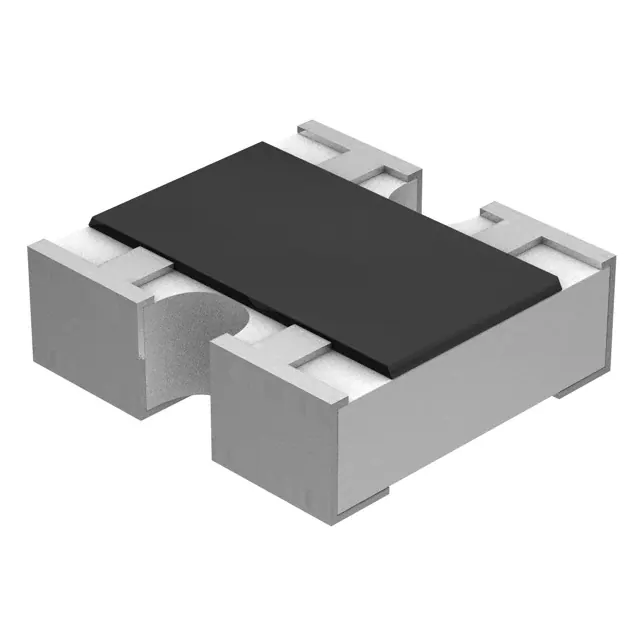

Panasonic Electronic Components-EXB-24V101JX - Resistor Networks, Arrays Product Specifications and Latest Quotes | Izzition

Similar Products

Part Number	EXB-24V101JX	EXB-24V103JX	EXB-24V104JX	EXB-24V151JX	EXB-24V105JX	EXB-24V181JX	EXB-24V121JX	EXB-24V102JX	EXB-24V1R1JX	EXB-24V111JX	EXB-24V131JX	EXB-24V161JX	EXB-24V201JX	EXB-24V301JX	EXB-24V100JX
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Circuit Type	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated
Resistance (Ohms)	100	10k	100k	150	1M	180	120	1K	1.1	110	130	160	200	300	10
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Number of Resistors	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
Resistor Matching Ratio	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Resistor-Ratio-Drift	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Number of Pins	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Power Per Element	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW
Temperature Coefficient	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Applications	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200	Automotive AEC-Q200
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex	0404 (1010 Metric), Convex
Supplier Device Package	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404	0404
Size / Dimension	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)
Height - Seated (Max)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)	0.018" (0.45mm)
