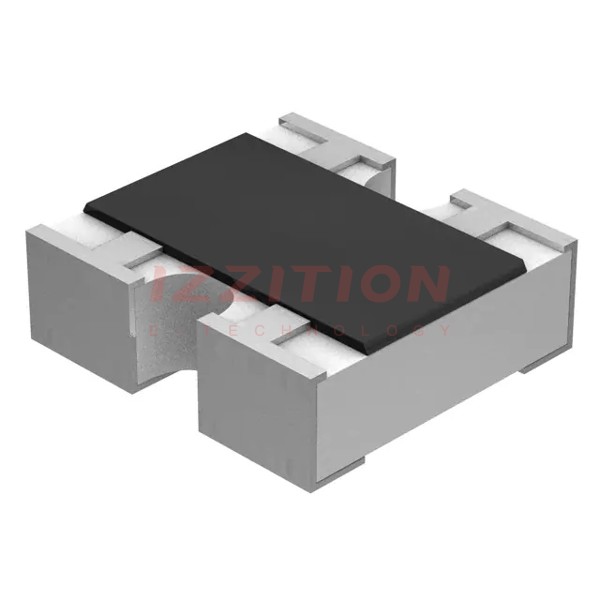

| Part Number | EXB-14V824JX | EXB-18V824JX | EXB-14V124JX | EXB-14V224JX | EXB-14V820JX | EXB-14V821JX | EXB-14V822JX | EXB-14V823JX |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 820k | 820k | 120k | 220k | 82 | 820 | 8.2k | 82k |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 2 | 4 | 2 | 2 | 2 | 2 | 2 | 2 |
| Resistor Matching Ratio | - | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - | - | - |
| Number of Pins | 4 | 8 | 4 | 4 | 4 | 4 | 4 | 4 |
| Power Per Element | 31mW | 31mW | 31mW | 31mW | 31mW | 31mW | 31mW | 31mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0302 (0805 Metric), Convex, Long Side Terminals | 0502 (1406 Metric), Long Side Terminals | 0302 (0805 Metric), Convex, Long Side Terminals | 0302 (0805 Metric), Convex, Long Side Terminals | 0302 (0805 Metric), Convex, Long Side Terminals | 0302 (0805 Metric), Convex, Long Side Terminals | 0302 (0805 Metric), Convex, Long Side Terminals | 0302 (0805 Metric), Convex, Long Side Terminals |
| Supplier Device Package | 0302 | 0502 | 0302 | 0302 | 0302 | 0302 | 0302 | 0302 |
| Size / Dimension | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.055" L x 0.024" W (1.40mm x 0.60mm) | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.031" L x 0.024" W (0.80mm x 0.60mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) |
