EVQ-Q2503W
  • Share:

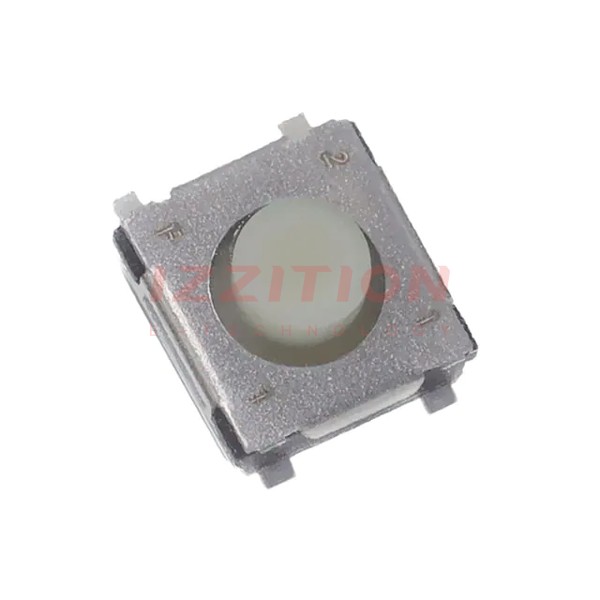

Panasonic Electronic Components EVQ-Q2503W

Manufacturer No:
EVQ-Q2503W
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
EVQ-Q2503W Datasheet
ECAD Model:
-
Description:
SWITCH TACTILE SPST-NO 0.02A 15V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.02A @ 15VDC
Actuator Type:Standard
Mounting Type:Surface Mount
Actuator Height off PCB, Vertical:3.10mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:SMD (SMT) Tab
Outline:6.50mm L x 6.00mm W
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:265gf
Ingress Protection:-
Features:-
Operating Temperature:-40°C ~ 85°C
0 Remaining View Similar

In Stock

$0.18
1,096

Please send RFQ , we will respond immediately.
