EVN-DCAA03B52
  • Share:

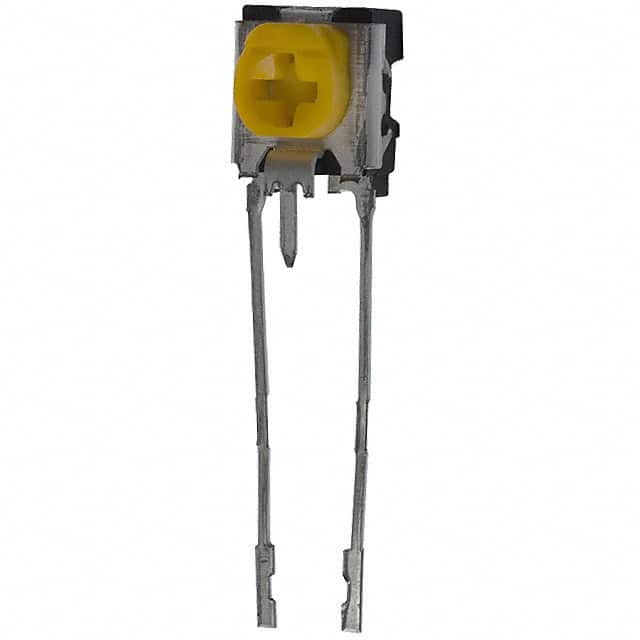

Panasonic Electronic Components EVN-DCAA03B52

Manufacturer No:
EVN-DCAA03B52
Manufacturer:
Panasonic Electronic Components
Package:
Cut Tape (CT)
Datasheet:
EVN-DCAA03B52 Datasheet
ECAD Model:
-
Description:
TRIMMER 500 OHM 0.1W PC PIN SIDE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:500 Ohms
Power (Watts):0.1W, 1/10W
Tolerance:±30%
Temperature Coefficient:-
Number of Turns:1
Adjustment Type:Side Adjustment
Resistive Material:Carbon
Mounting Type:Through Hole
Termination Style:PC Pins
Size / Dimension:Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm)
0 Remaining View Similar

In Stock

-
228

Please send RFQ , we will respond immediately.

Similar Products

Part Number EVN-DCAA03B52 EVN-DCAA03B55   EVN-DJAA03B52   EVN-DCAA03B53   EVN-DCAA03B54   EVN-D2AA03B52   EVN-D8AA03B52   EVN-DCAA03B22
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Resistance 500 Ohms 500 kOhms 500 Ohms 5 kOhms 50 kOhms 500 Ohms 500 Ohms 200 Ohms
Power (Watts) 0.1W, 1/10W 0.1W, 1/10W 0.1W, 1/10W 0.1W, 1/10W 0.1W, 1/10W 0.1W, 1/10W 0.1W, 1/10W 0.1W, 1/10W
Tolerance ±30% ±30% ±30% ±30% ±30% ±30% ±30% ±30%
Temperature Coefficient - - - - - - - -
Number of Turns 1 1 1 1 1 1 1 1
Adjustment Type Side Adjustment Side Adjustment Top Adjustment Side Adjustment Side Adjustment Side Adjustment Top Adjustment Side Adjustment
Resistive Material Carbon Carbon Carbon Carbon Carbon Carbon Carbon Carbon
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Termination Style PC Pins PC Pins PC Pins PC Pins PC Pins PC Pins PC Pins PC Pins
Size / Dimension Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) Rectangular - 0.264" x 0.252" Face (6.70mm x 6.40mm) Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) Rectangular - 0.252" x 0.307" Face (6.40mm x 7.80mm) Rectangular - 0.295" x 0.252" Face (7.50mm x 6.40mm) Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm)
