Please send RFQ , we will respond immediately.

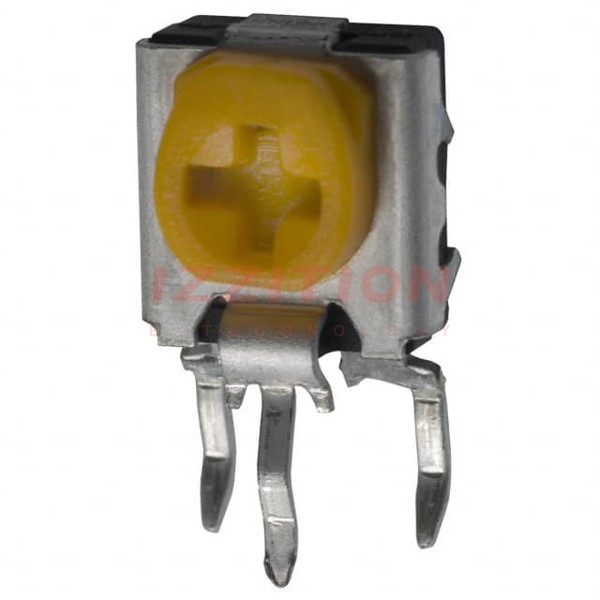

| Part Number | EVN-D2AA03B52 | EVN-D2AA03B55 | EVN-D2AA03B54 | EVN-D2AA03B53 | EVN-D8AA03B52 | EVN-DJAA03B52 | EVN-DCAA03B52 | EVN-D2AA03B22 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 500 Ohms | 500 kOhms | 50 kOhms | 5 kOhms | 500 Ohms | 500 Ohms | 500 Ohms | 200 Ohms |
| Power (Watts) | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Temperature Coefficient | - | - | - | - | - | - | - | - |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.252" x 0.307" Face (6.40mm x 7.80mm) | Rectangular - 0.252" x 0.307" Face (6.40mm x 7.80mm) | Rectangular - 0.252" x 0.307" Face (6.40mm x 7.80mm) | Rectangular - 0.252" x 0.307" Face (6.40mm x 7.80mm) | Rectangular - 0.295" x 0.252" Face (7.50mm x 6.40mm) | Rectangular - 0.264" x 0.252" Face (6.70mm x 6.40mm) | Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) | Rectangular - 0.252" x 0.307" Face (6.40mm x 7.80mm) |
