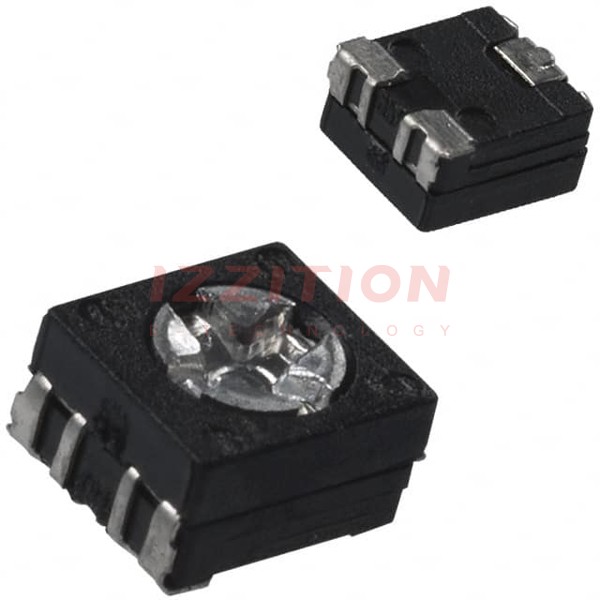

| Part Number | EVN-5ESX50B55 | EVN-5CSX50B55 | EVN-5ESX50B15 | EVN-5ESX50B25 | EVN-5ESX50B52 | EVN-5ESX50B53 | EVN-5ESX50B54 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 500 kOhms | 500 kOhms | 100 kOhms | 200 kOhms | 500 Ohms | 5 kOhms | 50 kOhms |
| Power (Watts) | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Temperature Coefficient | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) |
