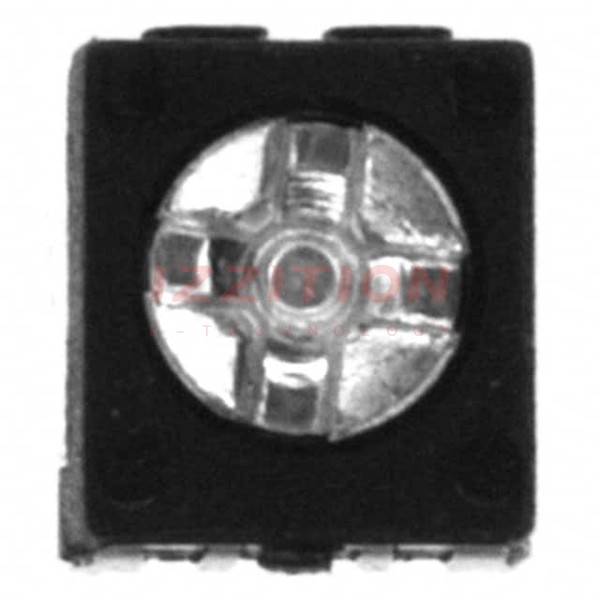

| Part Number | EVN-5CSX50B24 | EVN-5ESX50B24 | EVN-5CSX50B25 | EVN-5CSX50B54 | EVN-5CSX50B14 | EVN-5CSX50B22 | EVN-5CSX50B23 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 20 kOhms | 20 kOhms | 200 kOhms | 50 kOhms | 10 kOhms | 200 Ohms | 2 kOhms |
| Power (Watts) | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Temperature Coefficient | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) | Rectangular - 0.142" x 0.122" Face (3.60mm x 3.10mm) |
