Please send RFQ , we will respond immediately.

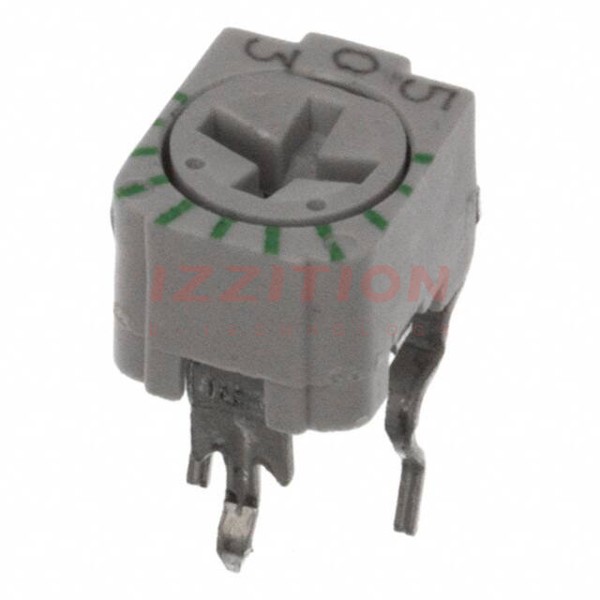

| Part Number | EVM-EYGA00B54 | EVM-EYSA00B54 | EVM-EYGA00B55 | EVM-EAGA00B54 | EVM-EGGA00B54 | EVM-EYGA00B24 | EVM-EYGA00B53 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 50 kOhms | 50 kOhms | 500 kOhms | 50 kOhms | 50 kOhms | 20 kOhms | 5 kOhms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.3W | 0.3W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±20% | ±20% | ±20% | ±25% | ±25% | ±20% | ±20% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±200ppm/°C | ±200ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) | Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) | Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) | Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) | Rectangular - 0.323" x 0.252" Face (8.20mm x 6.40mm) | Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) | Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) |
