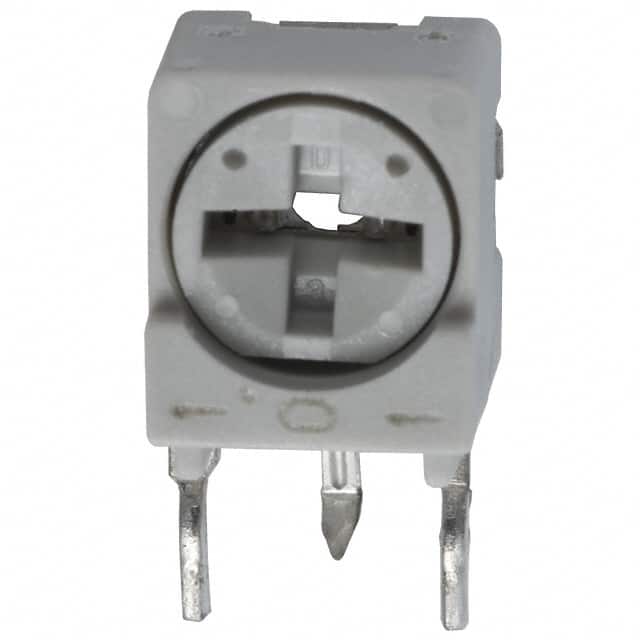

| Part Number | EVM-EGGA00B12 | EVM-EGSA00B12 | EVM-EGGA00B22 | EVM-EGGA00B52 | EVM-EGGA00B13 | EVM-EGGA00B14 | EVM-EGGA00B15 | EVM-EGGA00B16 | EVM-EAGA00B12 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 100 Ohms | 100 Ohms | 200 Ohms | 500 Ohms | 1 kOhms | 10 kOhms | 100 kOhms | 1 MOhms | 100 Ohms |
| Power (Watts) | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.323" x 0.252" Face (8.20mm x 6.40mm) | Rectangular - 0.323" x 0.252" Face (8.20mm x 6.40mm) | Rectangular - 0.323" x 0.252" Face (8.20mm x 6.40mm) | Rectangular - 0.323" x 0.252" Face (8.20mm x 6.40mm) | Rectangular - 0.323" x 0.252" Face (8.20mm x 6.40mm) | Rectangular - 0.323" x 0.252" Face (8.20mm x 6.40mm) | Rectangular - 0.323" x 0.252" Face (8.20mm x 6.40mm) | Rectangular - 0.323" x 0.252" Face (8.20mm x 6.40mm) | Rectangular - 0.315" x 0.252" Face (8.00mm x 6.40mm) |
