EVM-3WSX80B23
  • Share:

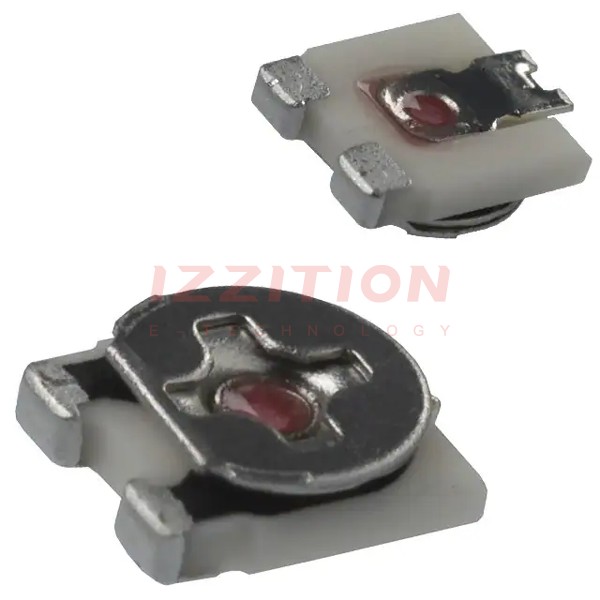

Panasonic Electronic Components EVM-3WSX80B23

Manufacturer No:
EVM-3WSX80B23
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
EVM-3WSX80B23 Datasheet
ECAD Model:
-
Description:
TRIMMER 2K OHM 0.15W J LEAD TOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:2 kOhms
Power (Watts):0.15W
Tolerance:±25%
Temperature Coefficient:±250ppm/°C
Number of Turns:1
Adjustment Type:Top Adjustment
Resistive Material:Cermet
Mounting Type:Surface Mount
Termination Style:J Lead
Size / Dimension:Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm)
0 Remaining View Similar

In Stock

-
291

Please send RFQ , we will respond immediately.

Similar Products

Part Number EVM-3WSX80B23 EVM-3WSX80B24   EVM-3WSX80B25   EVM-3WSX80B53   EVM-2WSX80B23   EVM-3WSX80B13   EVM-3WSX80B22
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Resistance 2 kOhms 20 kOhms 200 kOhms 5 kOhms 2 kOhms 1 kOhms 200 Ohms
Power (Watts) 0.15W 0.15W 0.15W 0.15W 0.15W 0.15W 0.15W
Tolerance ±25% ±25% ±25% ±25% ±25% ±25% ±25%
Temperature Coefficient ±250ppm/°C ±250ppm/°C ±250ppm/°C ±250ppm/°C ±250ppm/°C ±250ppm/°C ±250ppm/°C
Number of Turns 1 1 1 1 1 1 1
Adjustment Type Top Adjustment Top Adjustment Top Adjustment Top Adjustment Top Adjustment Top Adjustment Top Adjustment
Resistive Material Cermet Cermet Cermet Cermet Cermet Cermet Cermet
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Termination Style J Lead J Lead J Lead J Lead J Lead J Lead J Lead
Size / Dimension Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm)
