Please send RFQ , we will respond immediately.

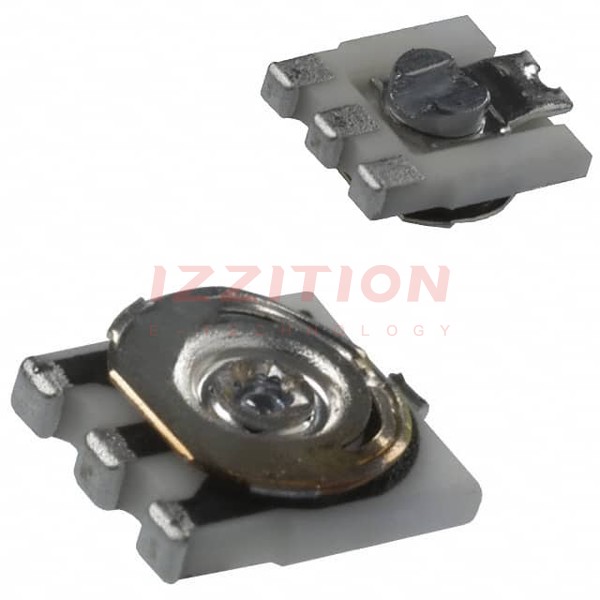

| Part Number | EVM-3RSX50B14 | EVM-3RSX50B15 | EVM-3RSX50B54 | EVM-3VSX50B14 | EVM-3YSX50B14 | EVM-3RSX50B16 | EVM-3RSX50B24 | EVM-3RSX50B13 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 10 kOhms | 100 kOhms | 50 kOhms | 10 kOhms | 10 kOhms | 1 MOhms | 20 kOhms | 1 kOhms |
| Power (Watts) | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Bottom Adjustment | Bottom Adjustment | Bottom Adjustment | Top Adjustment | Top Adjustment | Bottom Adjustment | Bottom Adjustment | Bottom Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) |
