Please send RFQ , we will respond immediately.

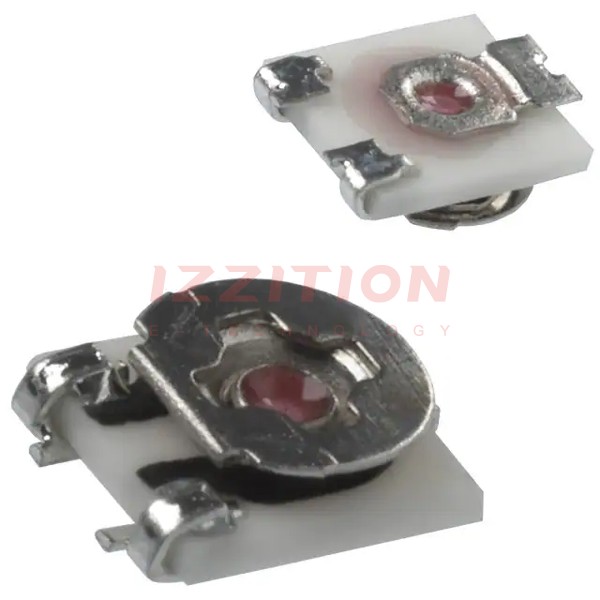

| Part Number | EVM-2NSX80B53 | EVM-2NSX80B55 | EVM-2WSX80B53 | EVM-2NSX80B54 | EVM-2NSX80B13 | EVM-2NSX80B23 | EVM-2NSX80B52 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 5 kOhms | 500 kOhms | 5 kOhms | 50 kOhms | 1 kOhms | 2 kOhms | 500 Ohms |
| Power (Watts) | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.111" x 0.087" Face (2.81mm x 2.20mm) | Rectangular - 0.111" x 0.087" Face (2.81mm x 2.20mm) | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) | Rectangular - 0.111" x 0.087" Face (2.81mm x 2.20mm) | Rectangular - 0.111" x 0.087" Face (2.81mm x 2.20mm) | Rectangular - 0.111" x 0.087" Face (2.81mm x 2.20mm) | Rectangular - 0.111" x 0.087" Face (2.81mm x 2.20mm) |
