Please send RFQ , we will respond immediately.

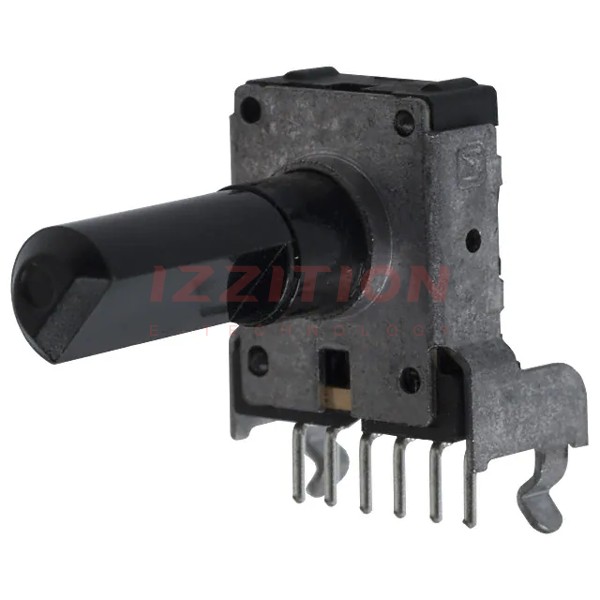

| Part Number | EVJ-C31F25B24 | EVJ-C31F25B54 | EVJ-C31F25B14 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Resistance (Ohms) | 20k | 50k | 10k |
| Tolerance | ±20% | ±20% | ±20% |
| Power (Watts) | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W |
| Built in Switch | Detent | Detent | Detent |
| Number of Turns | 1 | 1 | 1 |
| Features | - | - | - |
| Taper | Linear | Linear | Linear |
| Number of Gangs | 2 | 2 | 2 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | - | - | - |
| Rotation | 300° | 300° | 300° |
| Resistive Material | - | - | - |
| Termination Style | PC Pins, Board Locks | PC Pins, Board Locks | PC Pins, Board Locks |
| Actuator Type | Flatted | Flatted | Flatted |
| Actuator Length | 0.720" (18.30mm) | 0.720" (18.30mm) | 0.720" (18.30mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Bushing Thread | - | - | - |
| Mounting Type | Through Hole, Snap In | Through Hole, Snap In | Through Hole, Snap In |
