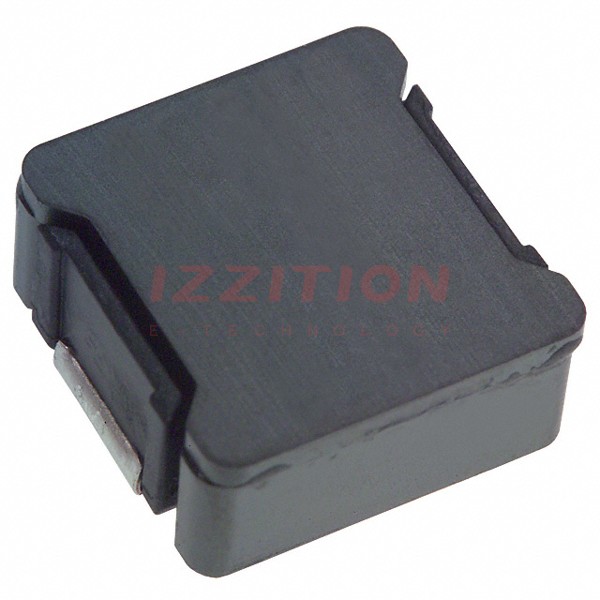

| Part Number | ETQ-PAF7R2HFA | ETQ-PAF1R2HFA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 7.2 µH | 1.2 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 12 A | 22.6 A |
| Current - Saturation (Isat) | 8.6A | 21.4A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 3.31mOhm Max | 1mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Supplier Device Package | - | - |
| Size / Dimension | 0.677" L x 0.661" W (17.20mm x 16.80mm) | 0.677" L x 0.661" W (17.20mm x 16.80mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.354" (9.00mm) |
