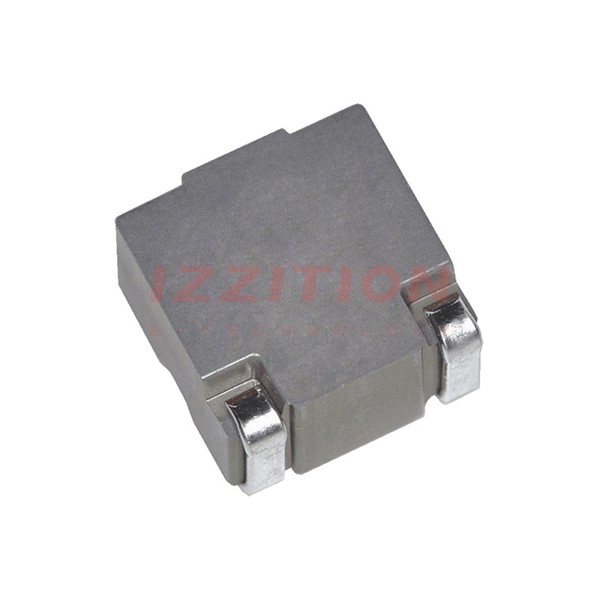

| Part Number | ETQ-P8M1R0JFA | ETQ-P8M1R5JFA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 1 µH | 1.5 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 31.8 A | 27.7 A |
| Current - Saturation (Isat) | 44.4A | 29.9A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.5mOhm Max | 1.98mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 160°C | -40°C ~ 160°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Supplier Device Package | - | - |
| Size / Dimension | 0.496" L x 0.520" W (12.60mm x 13.20mm) | 0.496" L x 0.520" W (12.60mm x 13.20mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) |
