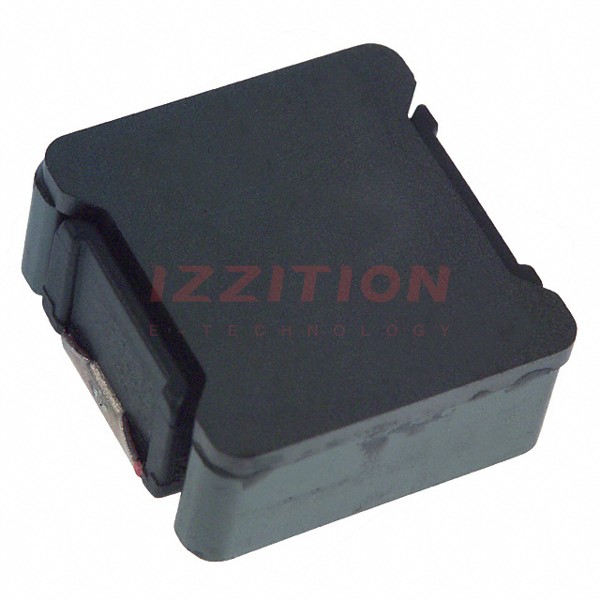

| Part Number | ETQ-P6F3R5SFA | ETQ-P6F2R5SFA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.5 µH | 2.5 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 9.3 A | 10.8 A |
| Current - Saturation (Isat) | 9.5A | 11.3A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 6.48mOhm Max | 4.92mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Supplier Device Package | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.224" (5.70mm) | 0.224" (5.70mm) |
