ETQ-P5M220YFM
  • Share:

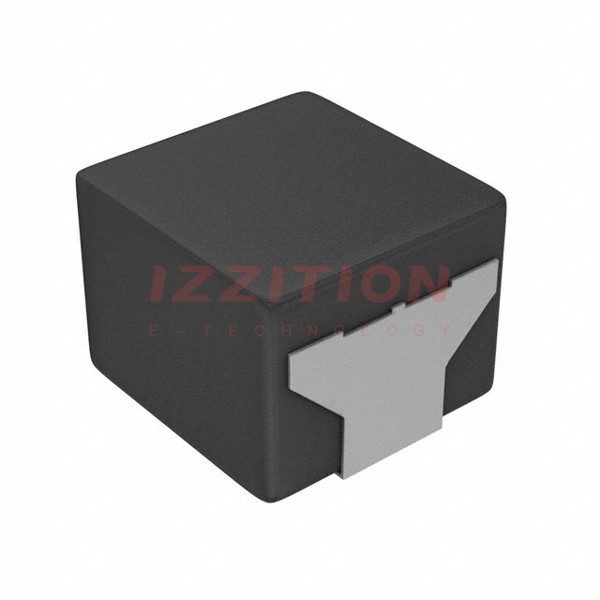

Panasonic Electronic Components ETQ-P5M220YFM

Manufacturer No:
ETQ-P5M220YFM
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ETQ-P5M220YFM Datasheet
ECAD Model:
-
Description:
FIXED IND 22UH 3.7A 102MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Metal Composite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):3.7 A
Current - Saturation (Isat):5.8A
Shielding:Shielded
DC Resistance (DCR):102mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD, J-Lead
Supplier Device Package:-
Size / Dimension:0.295" L x 0.276" W (7.50mm x 7.00mm)
Height - Seated (Max):0.213" (5.40mm)
0 Remaining View Similar

In Stock

$1.61
140

Please send RFQ , we will respond immediately.

Similar Products

Part Number ETQ-P5M220YFM ETQ-P5M220YFC   ETQ-P5M220YFK
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Metal Composite Metal Composite Metal Composite
Inductance 22 µH 22 µH 22 µH
Tolerance ±20% ±20% ±20%
Current Rating (Amps) 3.7 A 6.2 A 4.8 A
Current - Saturation (Isat) 5.8A 8.8A 6.9A
Shielding Shielded Shielded Shielded
DC Resistance (DCR) 102mOhm Max 50mOhm Max 70mOhm Max
Q @ Freq - - -
Frequency - Self Resonant - - -
Ratings AEC-Q200 AEC-Q200 AEC-Q200
Operating Temperature -40°C ~ 150°C -40°C ~ 150°C -40°C ~ 150°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz
Features - - -
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 2-SMD, J-Lead 2-SMD, J-Lead 2-SMD, J-Lead
Supplier Device Package - - -
Size / Dimension 0.295" L x 0.276" W (7.50mm x 7.00mm) 0.421" L x 0.394" W (10.70mm x 10.00mm) 0.335" L x 0.315" W (8.50mm x 8.00mm)
Height - Seated (Max) 0.213" (5.40mm) 0.213" (5.40mm) 0.213" (5.40mm)
