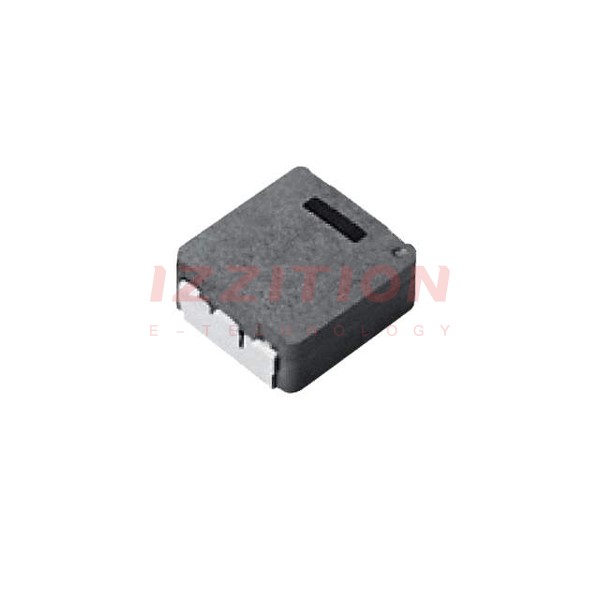

| Part Number | ETQ-P5M1R0YLC | ETQ-P5M2R0YLC |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 1 µH | 2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 27.5 A | 19.4 A |
| Current - Saturation (Isat) | 38A | 31.3A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 2.53mOhm Max | 5.06mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Supplier Device Package | - | - |
| Size / Dimension | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.429" L x 0.394" W (10.90mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) |
