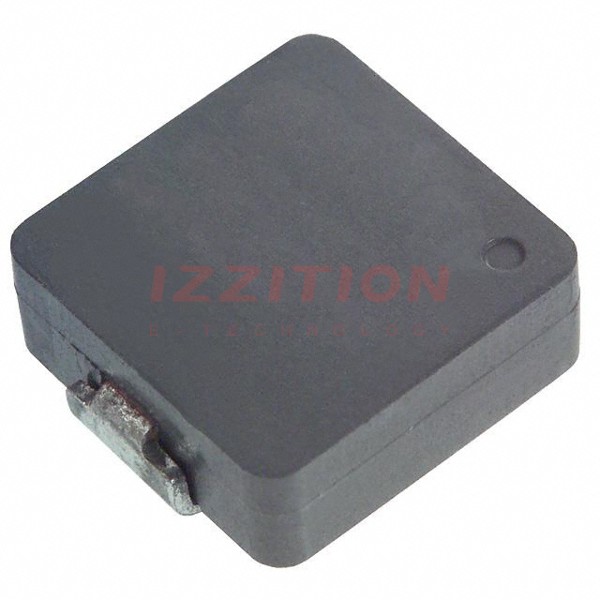

| Part Number | ETQ-P5LR50XFA | ETQ-P5LR60XFA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 500 nH | 600 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 30 A | 27 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 0.8mOhm | 1.1mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Supplier Device Package | - | - |
| Size / Dimension | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.571" L x 0.492" W (14.50mm x 12.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) |
