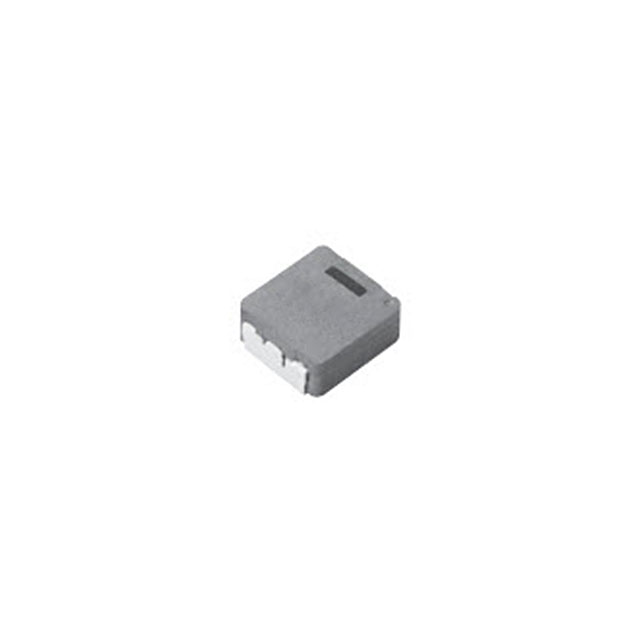

| Part Number | ETQ-P4M3R3YFN | ETQ-P4M3R3KFN |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 8.2 A | 9.2 A |
| Current - Saturation (Isat) | 13.3A | 12A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 17.71mOhm Max | 14.41mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Supplier Device Package | - | - |
| Size / Dimension | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.252" L x 0.236" W (6.40mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.189" (4.80mm) |
