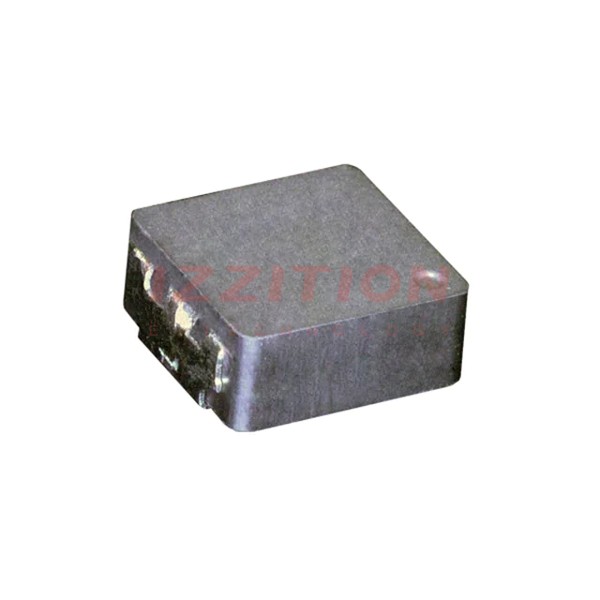

| Part Number | ETQ-P4M150KVC | ETQ-P4M150KVK | ETQ-P4M1R0KVC | ETQ-P4M100KVC |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 15 µH | 15 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 6.3 A | 4.5 A | 23.9 A | 7.6 A |
| Current - Saturation (Isat) | 9.2A | 7.7A | 34.6A | 10.8A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 40.7mOhm Max | 60.5mOhm Max | 2.86mOhm Max | 27.94mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.421" L x 0.394" W (10.70mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
