ETQ-P3W1R5WFN
  • Share:

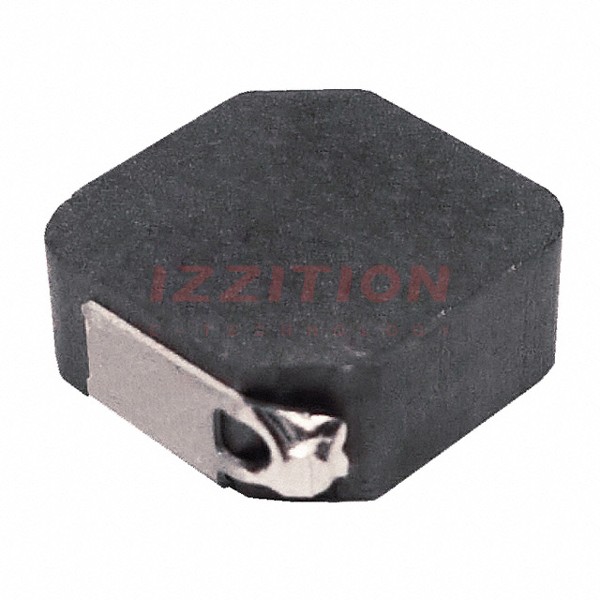

Panasonic Electronic Components ETQ-P3W1R5WFN

Manufacturer No:
ETQ-P3W1R5WFN
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ETQ-P3W1R5WFN Datasheet
ECAD Model:
-
Description:
FIXED IND 1.5UH 11A 13 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:-
Material - Core:Metal Composite
Inductance:1.5 µH
Tolerance:±20%
Current Rating (Amps):11 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):13mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD, J-Lead
Supplier Device Package:-
Size / Dimension:0.276" L x 0.260" W (7.00mm x 6.60mm)
Height - Seated (Max):0.118" (3.00mm)
0 Remaining View Similar

In Stock

$1.22
143

Please send RFQ , we will respond immediately.

Similar Products

Part Number ETQ-P3W1R5WFN ETQ-P3W1R0WFN
Manufacturer Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete
Type - -
Material - Core Metal Composite Metal Composite
Inductance 1.5 µH 1 µH
Tolerance ±20% ±20%
Current Rating (Amps) 11 A 13 A
Current - Saturation (Isat) - -
Shielding Shielded Shielded
DC Resistance (DCR) 13mOhm Max 7.9mOhm Max
Q @ Freq - -
Frequency - Self Resonant - -
Ratings - -
Operating Temperature - -
Inductance Frequency - Test 100 kHz 100 kHz
Features - -
Mounting Type Surface Mount Surface Mount
Package / Case 2-SMD, J-Lead 2-SMD, J-Lead
Supplier Device Package - -
Size / Dimension 0.276" L x 0.260" W (7.00mm x 6.60mm) 0.276" L x 0.260" W (7.00mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm) 0.118" (3.00mm)
