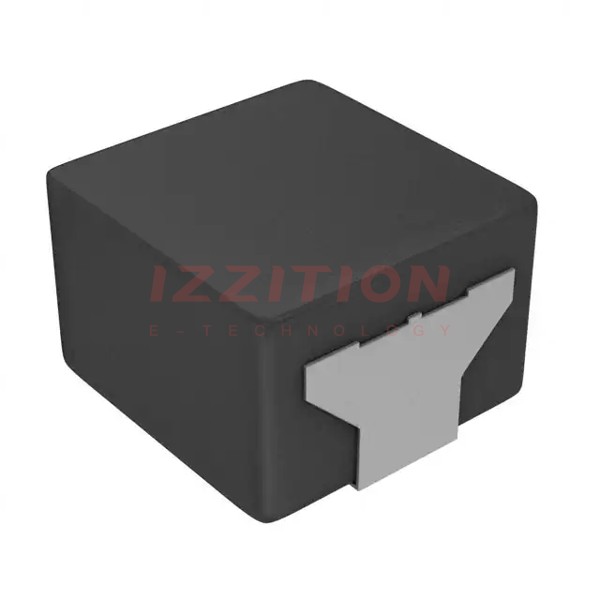

| Part Number | ETQ-P3M6R8KVN | ETQ-P3M6R8KVP |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 4.5 A | 3.5 A |
| Current - Saturation (Isat) | 8.1A | 6.1A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 50.16mOhm Max | 72.27mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Supplier Device Package | - | - |
| Size / Dimension | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.217" L x 0.197" W (5.50mm x 5.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
