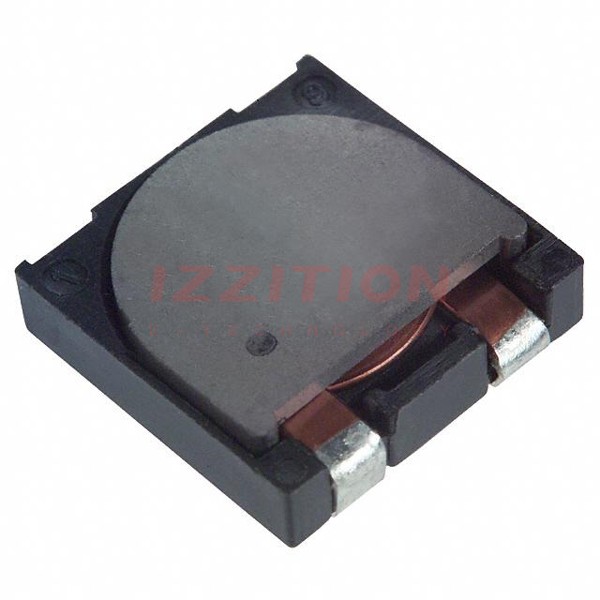

| Part Number | ETQ-P3H1R4BFA | ETQ-P3H0R4BFA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.43 µH | 360 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 12 A | 23 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 4.52mOhm Max | 1.04mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard, 4 Lead | Nonstandard, 4 Lead |
| Supplier Device Package | - | - |
| Size / Dimension | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.512" L x 0.508" W (13.00mm x 12.90mm) |
| Height - Seated (Max) | 0.154" (3.90mm) | 0.154" (3.90mm) |
