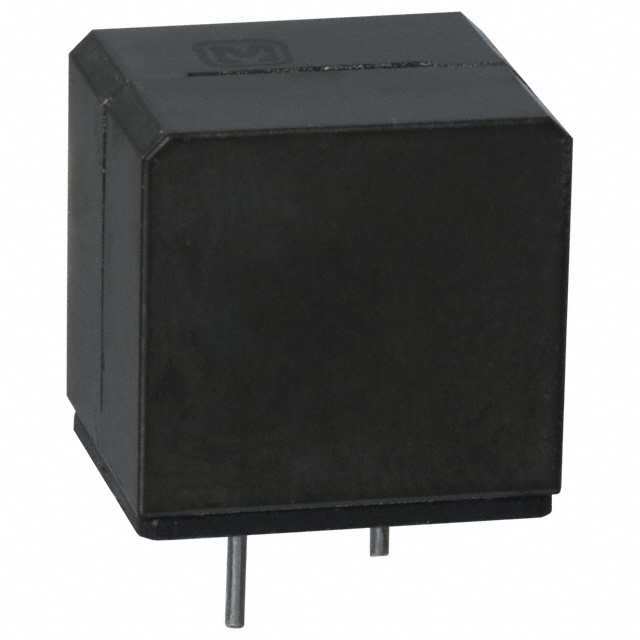

| Part Number | ETQ-A17B150 | ETQ-A15B150 | ETQ-A17B100 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 15 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 10 A | 8 A | 11 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 17mOhm Max | 15mOhm Max | 17mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 10 kHz | 10 kHz | 10 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Horizontal - Corner Terminals | Radial, Horizontal - Corner Terminals | Radial, Horizontal - Corner Terminals |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.689" L x 0.591" W (17.50mm x 15.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) | 0.630" (16.00mm) | 0.709" (18.00mm) |
