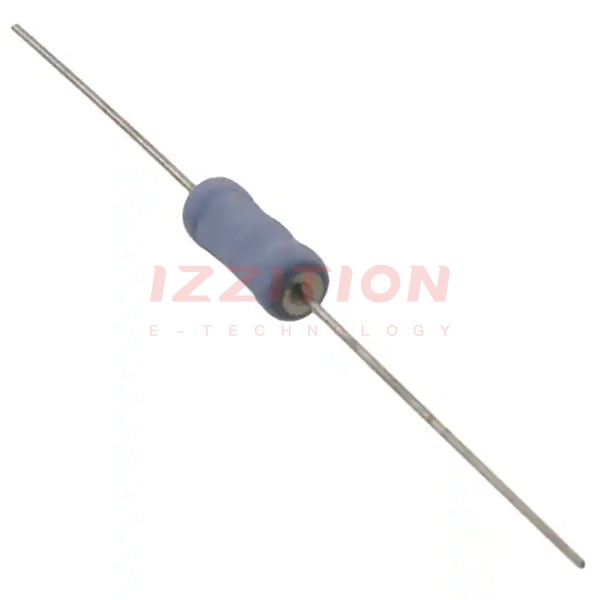

| Part Number | ERX-3SJ1R5 | ERX-3SJ1R5A | ERX-3SJ1R8 | ERX-3SJ1R6 | ERX-3SJ7R5 | ERX-5SJ1R5 | ERX-2SJ1R5 | ERX-3SJ1R0 | ERX-3SJ1R1 | ERX-3SJ1R2 | ERX-3SJ1R3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 1.5 Ohms | 1.5 Ohms | 1.8 Ohms | 1.6 Ohms | 7.5 Ohms | 1.5 Ohms | 1.5 Ohms | 1 Ohms | 1.1 Ohms | 1.2 Ohms | 1.3 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 5W | 2W | 3W | 3W | 3W | 3W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±200ppm/°C | ±350ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | 0.315" Dia x 0.945" L (8.00mm x 24.00mm) | 0.157" Dia x 0.472" L (4.00mm x 12.00mm) | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
